Turbidity

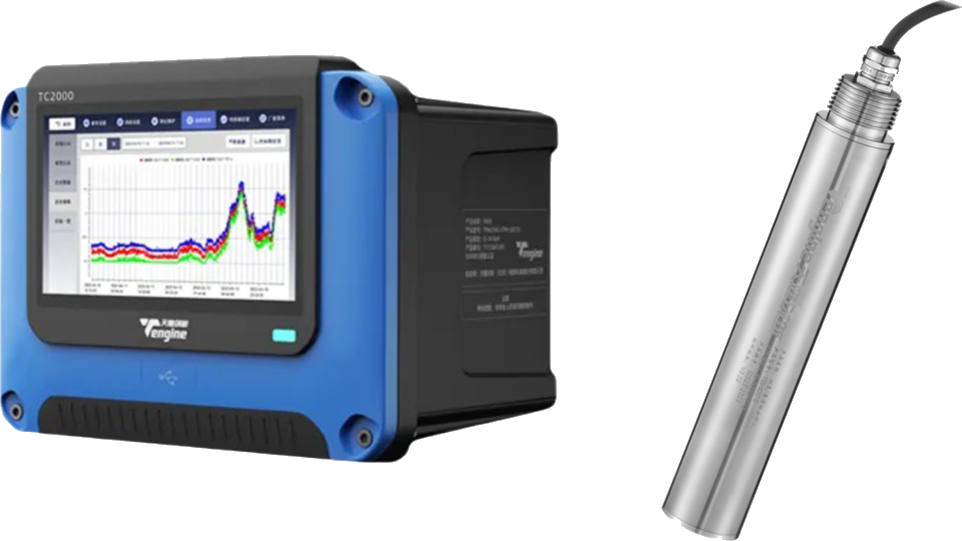

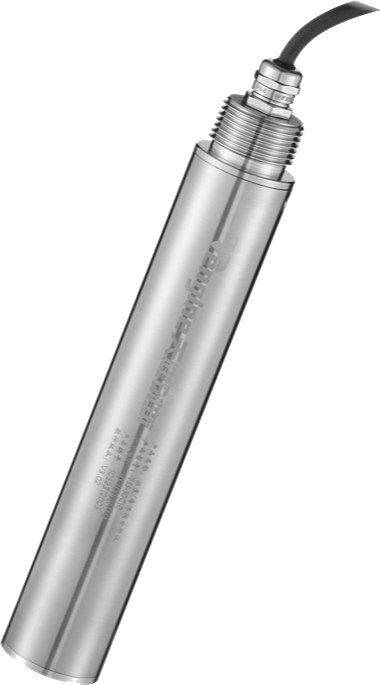

TSS Immersion Turbidity / Suspended Solids Analyzer
Turbidity / Suspended Solids
Dual-angle infrared scattering analyzer for continuous turbidity and suspended solids measurement in wastewater and drinking water processes.
- Measures both turbidity and suspended solids concentration
- Sapphire optical window — wear-resistant and optically stable
- Digital two-way communication resists signal attenuation over long cable runs
Overview
A TSS analyzer is an online instrument that continuously measures total suspended solids concentration in water, enabling operators to control sludge handling, monitor effluent quality and optimize treatment processes.
Infrared light from the source is absorbed, reflected and scattered as it passes through the measured medium. Within a certain range, scattered light intensity is proportional to turbidity or suspended solids concentration. The TSS analyzer uses two detector sets at 135° and 90° angles and calculates concentration from the received scattered light.
Typical Applications
Features
- Capable of measuring both turbidity and suspended solids (sludge) concentration
- Built-in multi-point calibration; ready to use without secondary calibration
- Sapphire optical window for high hardness, wear resistance and optical stability
- Digital sensor with strong anti-interference capability; shielded cable, 10 m standard and customizable
- Optional brush self-cleaning for maintenance-free operation and reduced O&M costs
Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 0–4000 NTU; 0–1000 mg/L (freely adjustable within range) |
| Resolution | ≤ 0.01 NTU |
| Accuracy | ±3% or ±0.1 NTU (whichever is greater, based on standard solution) |
| Repeatability | 0.1 NTU or ≤ 1% (whichever is greater) |
| Digital Interface | RS485 interface (Modbus RTU protocol) |
| Dimensions | Φ40.5 × 240 mm |
| Material | 316L stainless steel |
| Cable Length | Standard 10 m shielded cable; customizable on request |
| Connection Type | 1" conical external thread |
| Protection Rating | IP68 |
| Operating Temperature | 0–60 °C |
| Relative Humidity | 0–95% RH, non-condensing |
| Operating Pressure | Max. 4 bar |
