Turbidity

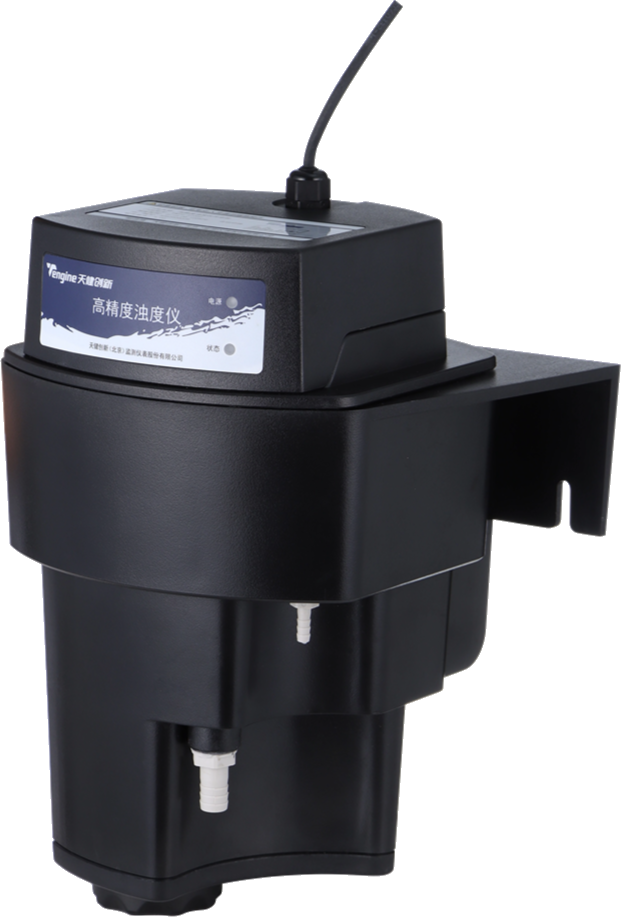

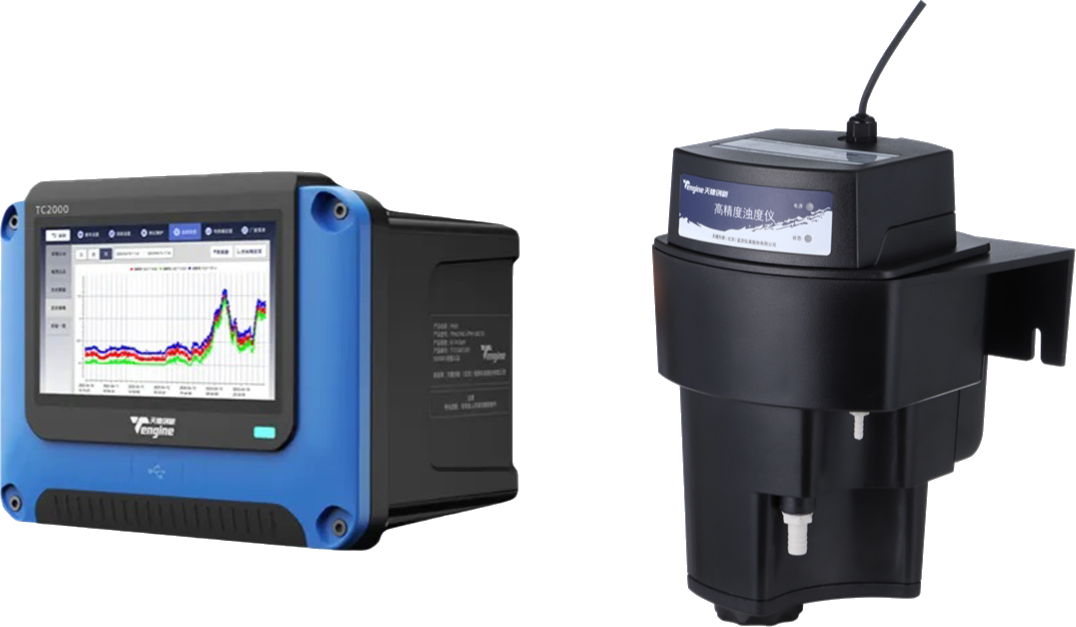

MTU High-Precision Turbidity Analyzer
Low-Range Turbidity
High-precision low-range turbidity analyzer for drinking water treatment and filtration monitoring.
- 0.001 NTU resolution with automatic multi-range switching
- Drinking water compliance monitoring per ISO 7027
- Built-in bubble elimination for stable low-range readings
Overview
A low-range turbidity analyzer continuously measures the clarity of treated and filtered water, verifying filtration performance and drinking water compliance at NTU levels far below what process turbidity meters can resolve.
The MTU High-Precision Turbidity Analyzer strictly complies with the ISO 7027 international standard and uses the 90° light scattering principle. A focused light beam emitted from the sensor's optical module enters the sample chamber and is scattered by suspended particles. The photodetector captures the light scattered at a 90° angle from the incident beam; the intensity of this scattered light is directly proportional to the turbidity of the sample.
Typical Applications
Features
- Built-in bubble elimination device effectively removes interference caused by air bubbles, ensuring stable readings under varying flow and pressure conditions
- Intelligent data processing algorithm balances fast response during sample changes with stable readings during steady-state conditions
- Light source compensation technology minimizes the effect of temperature fluctuations on the light source, improving long-term stability and extending calibration intervals
- Optional automatic sludge discharge kit periodically removes sediment from the bottom of the flow cell, reducing manual maintenance
Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 0–100 NTU with automatic multi-range switching |
| Resolution | 0.001 NTU |
| Accuracy | 0–40 NTU: ±2% of reading or ±0.02 NTU (whichever is greater); 40–100 NTU: ±5% of reading |
| DC Power Supply | 9–27 VDC, 2 W |
| Digital Interface | RS485 interface (Modbus RTU protocol) |
| Dimensions | 379 × 310 × 243 mm |
| Material | ABS |
| Cable Length | 2 m standard; optional 10 m or 30 m |
| Installation Method | Flow-through installation |
| Protection Rating | IP65 |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% RH, non-condensing |
