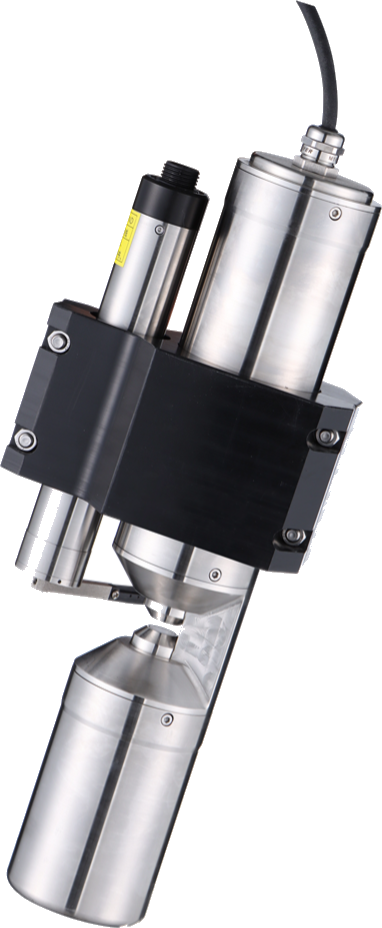

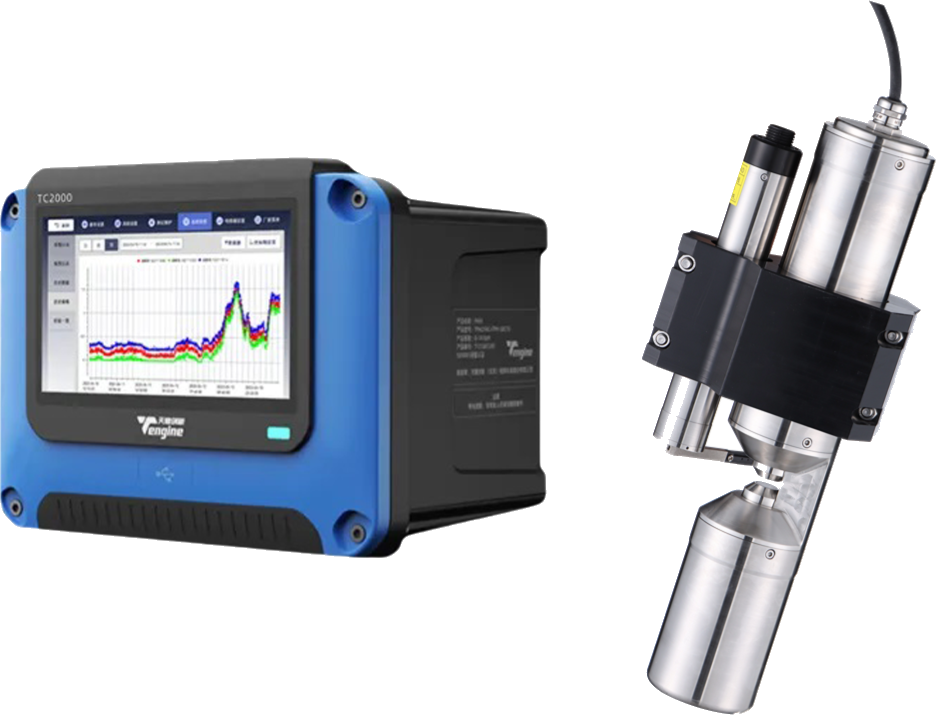

UVN Nitrate Nitrogen Analyzer
Nitrate Nitrogen
Reagent-free UV absorption nitrate analyzer with second-level response — in-situ immersion measurement that gives denitrification and carbon dosing systems the real-time feedback they need.
- Second-level response enables true closed-loop dosing control
- Zero reagents and zero consumables — minimal operating cost
- Direct immersion in the tank or filter — no sampling system required
- Interlocked carbon dosing measurably cuts chemical consumption
Overview
A nitrate nitrogen analyzer continuously measures the NO₃⁻-N concentration in water. In wastewater treatment it provides the real-time feedback required to control denitrification and optimize carbon source dosing; in effluent monitoring it verifies nitrogen compliance.
The UVN Nitrate Nitrogen Analyzer adopts high-precision ultraviolet (UV) absorption technology. During measurement, the sample fills the optical path; light emitted from the source passes through the water sample, where part of the light is absorbed. The remaining light is detected by a sensor on the opposite side, and the analyzer calculates the nitrate nitrogen concentration based on the absorption characteristics, with compensation for turbidity and organic interference.
Typical Applications
Features
- UV absorption technology with turbidity and organic matter compensation
- Reagent-free, fast response and continuous online measurement
- Supports both in-situ direct measurement and pretreated sampling for flexible monitoring needs
- Unique structural design prevents bubble and impurity accumulation, ensuring stable readings
- Built-in intelligent algorithm delivers high measurement accuracy with minimal drift, requiring infrequent calibration
- Compatible with brush-type self-cleaning for maintenance-free operation and lower O&M costs
Specifications
| Parameter | Specification |
|---|---|
| Measurement Method | UV absorption |
| Measuring Range | NO₃⁻-N: 0.1–25 mg/L; Temperature: 0–50 °C |
| Resolution | NO₃⁻-N: 0.1 mg/L; Temperature: 0.1 °C |
| Accuracy | NO₃⁻-N: ≤ ±2% of reading or ±0.3 mg/L (whichever is greater, with standard solution); Temperature: ±0.2 °C |
| Response Time | 1 minute |
| Dimensions | Φ65 × 350 mm |
| Material | 316L stainless steel |
| Cable Length | Standard 10 m shielded cable; customizable on request |
| Communication | RS485 interface (Modbus RTU protocol) |
| Protection Rating | IP68 |
| Sample Temperature | 0–40 °C (no ice formation) |
| Ambient Temperature | 5–50 °C |
| Cleaning | Optional automatic cleaning brush |
