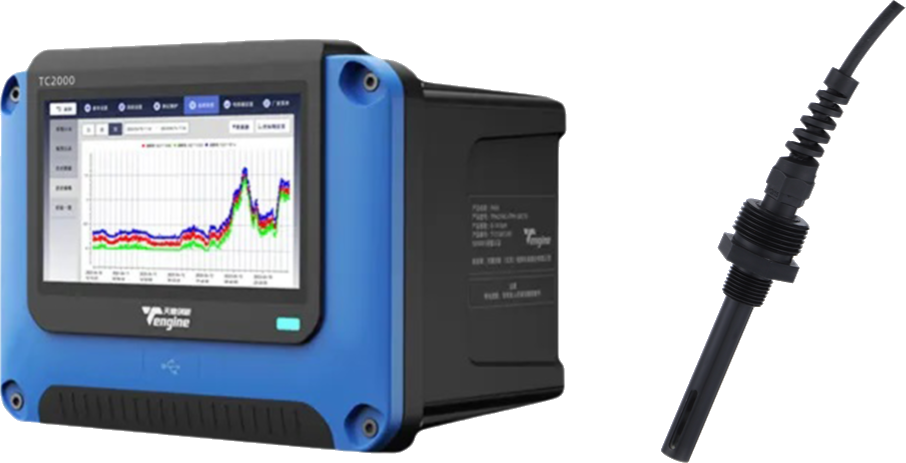

TCD Conductivity / TDS / Salinity Analyzer
Conductivity / TDS / Salinity
Conductivity and concentration analyzer for industrial process water and chemical concentration monitoring.
- Four-electrode measurement for high accuracy and stability
- Conductivity, TDS, salinity and temperature in one analyzer
- Auto-range switching from pure water to concentrated solutions
Overview
A conductivity analyzer continuously measures the ability of water to conduct electrical current, which correlates directly with dissolved ion concentration — the basis for TDS, salinity and chemical concentration monitoring.
The TCD Conductivity/Concentration Analyzer uses a four-electrode measurement principle. As electric current flows through the liquid, ion movement generates a voltage difference between the measuring electrodes. This voltage signal is detected and transmitted to the analyzer, which calculates the conductivity of the liquid based on Ohm's Law.
Typical Applications
Features
- Four-electrode measurement technology for high accuracy and excellent stability
- Multi-parameter display: conductivity, TDS, salinity and temperature
- Auto-range switching automatically adjusts range and unit based on medium concentration

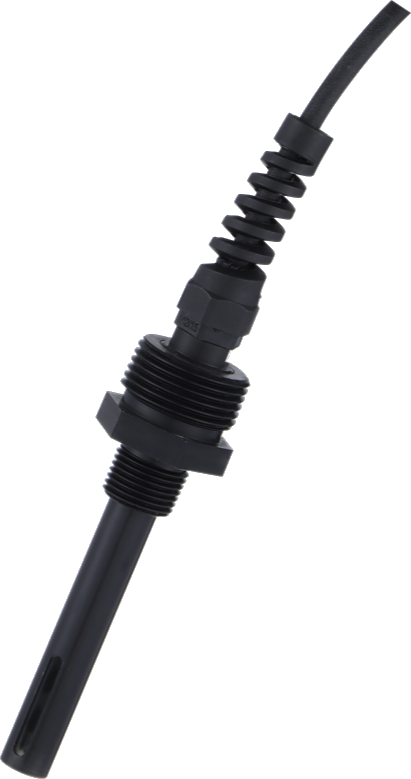

- Dual-thread design (top and bottom) supports flexible installation: submersible, flow-through, insertion and more
Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | Conductivity: 0–200 mS/cm; Salinity: 0–200 ‰; TDS: 0–99,999 mg/L; Temperature: 0–80 °C |
| Measurement Units | µS/cm (mS/cm), mg/L, ppm, %, ‰ |
| Resolution | Conductivity: 0.01 / 0.1 / 1 µS/cm, 0.01 / 0.1 mS/cm; TDS: 0.01 mg/L; Salinity: 0.01 ‰; Temperature: 0.01 °C |
| Accuracy | Conductivity: ±1%; TDS: ±1%; Salinity: ±2%; Temperature: ±0.2 °C |
| Temperature Compensation | Pt1000 or NTC10K automatic temperature compensation |
| Dimensions | Φ14 × 124 mm |
| Material | PC + epoxy resin |
| Cable Length | 10 m standard, extendable to 30 m |
| Connection Type | Dual thread: 1" and 1/2" male threads |
| Protection Rating | IP68 |
| Operating Temperature | 0–60 °C |
| Relative Humidity | 0–95% RH, non-condensing |
| Operating Pressure | Max. 4 bar |
