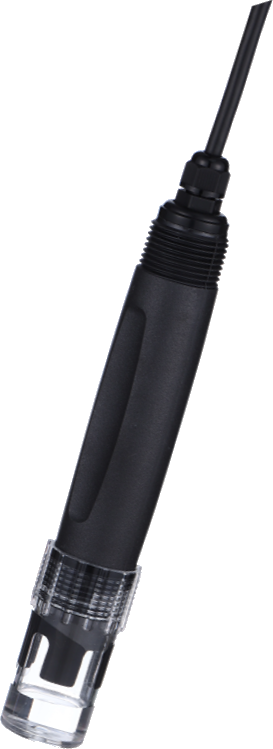

TPH pH Analyzer
pH
Online pH analyzer for continuous process control, neutralization and discharge compliance monitoring.
- Automatic temperature compensation
- Stable long-term electrode performance
- Multiple installation options
Overview
A pH analyzer continuously measures the acidity or alkalinity of water, providing the control signal for neutralization, process regulation and discharge compliance monitoring.
The pH analyzer operates using a glass electrode immersed in the solution. Due to the difference in hydrogen ion concentrations inside and outside the electrode, an ultra-thin hydrated layer forms on both surfaces of the glass bulb. The activity difference of hydrogen ions on these two layers generates a potential difference across the electrode, which correlates with the pH value of the solution.
Typical Applications
Features
- Strong anti-interference circuit design with solution grounding terminal for improved electrode interference resistance, suitable for harsh environments
- Electronic unit individually calibrated at the factory for higher measurement accuracy
- High-performance composite electrode with double salt bridge reference, resistant to clogging
- Solid-state polymer electrode with high pressure resistance and extended service life
Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | pH: 0–14 pH; Temperature: 0–60 °C |
| Resolution | pH: 0.01 pH; Temperature: 0.1 °C |
| Accuracy | pH: ±0.1 pH; Temperature: ±0.2 °C |
| Temperature Compensation | Pt1000 or NTC10K automatic temperature compensation |
| Dimensions | Φ29 × 180 mm |
| Material | Plastic + glass |
| Cable Length | 10 m standard, extendable to 30 m |
| Installation | Immersion with mounting bracket; flow-through and floating-ball accessories optional |
| Protection Rating | IP68 |
| Operating Temperature | 0–60 °C |
| Relative Humidity | 0–95% RH, non-condensing |
| Operating Pressure | 0–6 bar (6 bar rating at 25 °C) |
Frequently Asked Questions
Related Products

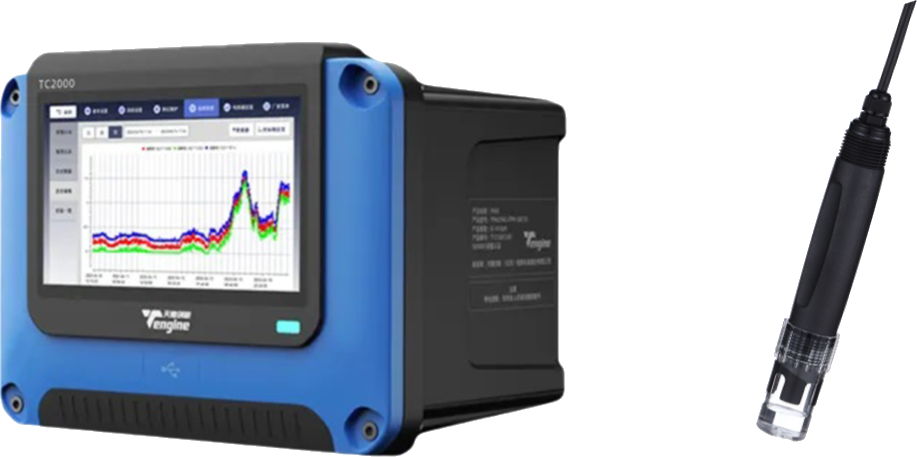

Integrated digital pH sensor with measurement, storage and processing built into the probe — plug-and-play RS485 Modbus networking with TENGINE controllers.
