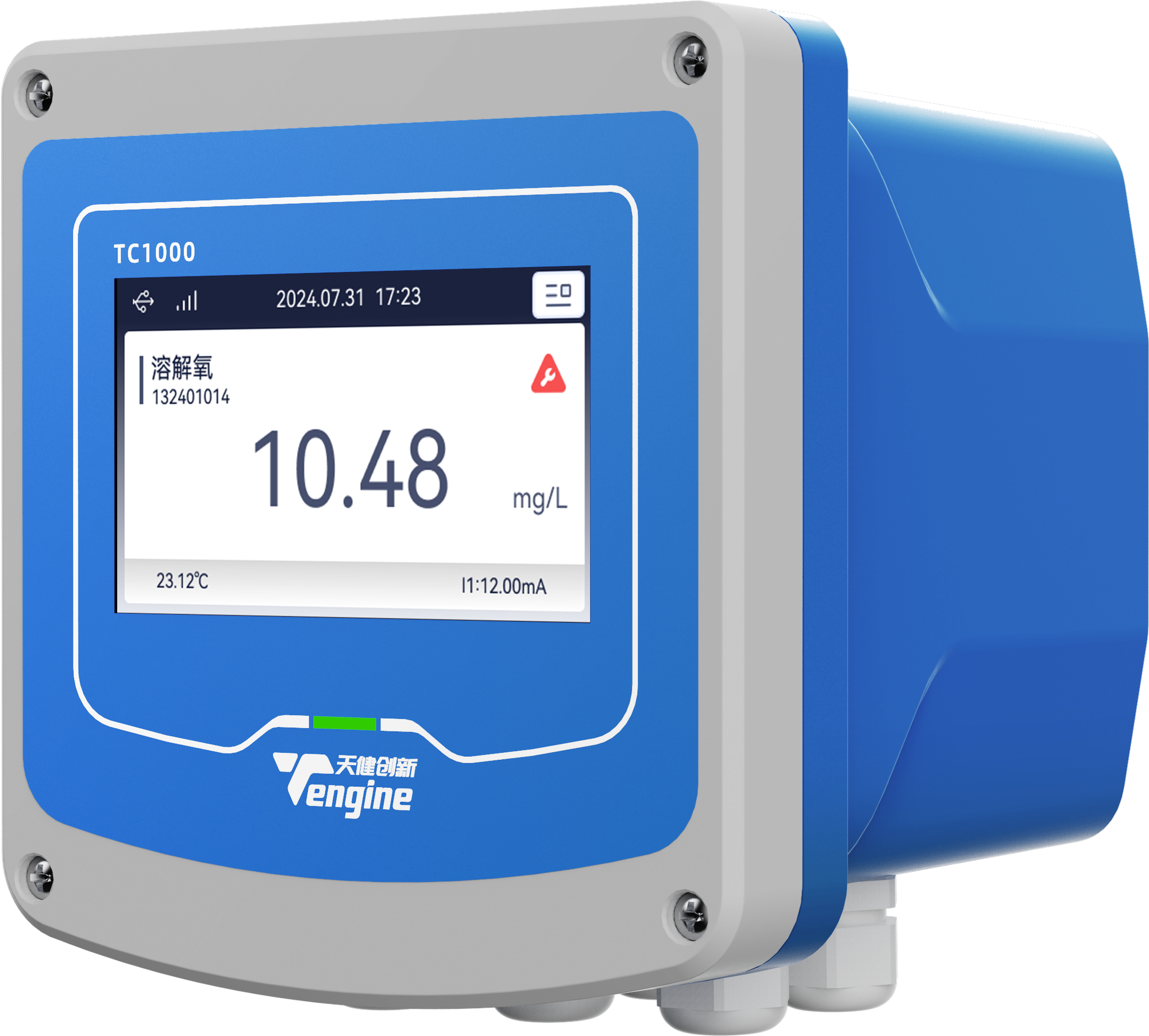

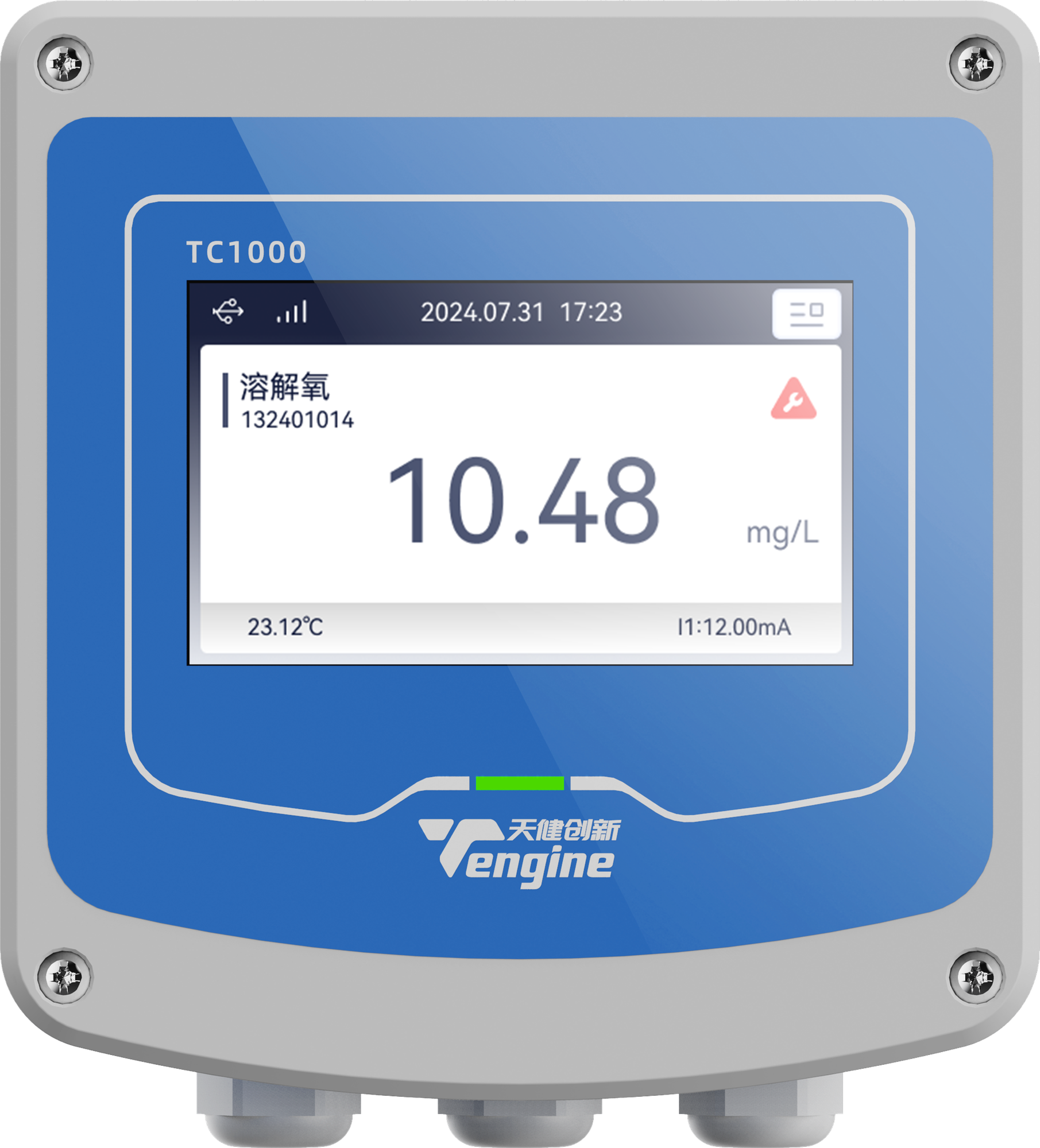

TC1000 Classic Controller
Multi-Parameter Controller
Universal controller supporting digital and analog sensors across 10+ water quality parameters, with touchscreen operation and 4–20 mA / RS485 / relay outputs.
- One controller for digital and analog sensors — 10+ parameters
- Plug-and-play sensor recognition, no manual configuration
- 4–20 mA, RS485 and relay outputs for any platform
Overview
A water quality controller is the central unit that powers sensors, displays measurements, provides calibration and outputs signals to SCADA, PLC or telemetry systems.
The TC1000 supports both digital and analog sensors and is compatible with a wide range of water quality parameters — suspended solids, dissolved oxygen, turbidity, pH, ORP, conductivity, ammonia nitrogen, nitrate nitrogen and more, covering over 10 types of indicators. A high-definition touchscreen provides simple operation with analog, digital and relay outputs.
Typical Applications
Features
- Excellent compatibility — universal interface supports both digital and analog sensors
- Flexible installation — wall-mounted, panel-mounted and DIN rail options
- Plug-and-play sensor recognition with no manual configuration required
- User-friendly touchscreen interface with real-time data display and simplified troubleshooting
- Stable and versatile communication — 4–20 mA, RS485 and switch outputs for various platforms
Specifications
| Parameter | Specification |
|---|---|
| Display | 4.3-inch touchscreen |
| Display Contents | Date, time, measurement values, current output, historical data, alarm information |
| Languages | Chinese and English |
| Power Supply | AC 100–240 V ±10%, 50/60 Hz; DC 18–36 V, max. 25 W |
| Sensor Channels | 2 digital sensor interfaces or 1 analog input |
| Analog Outputs | 2 channels, 0/4–20 mA |
| Digital Output | 1 × RS485 (Modbus RTU protocol) |
| Relay Outputs | 3 programmable relays, configurable for alarm and timing functions |
| Data Storage | Automatic data storage with power-off protection; historical data for up to 10 years |
| USB Port | For data download and firmware upgrades |
| Housing Material | ABS + PC |
| Dimensions | 155 × 155 × 165 mm |
| Operating Temperature | -20 to 60 °C |
| Storage Temperature | -40 to 70 °C |
| Protection Rating | IP66 |
| Installation | Wall-mounted, pole-mounted or panel-mounted; DIN rail optional |
| Weight | 1.4 kg |
