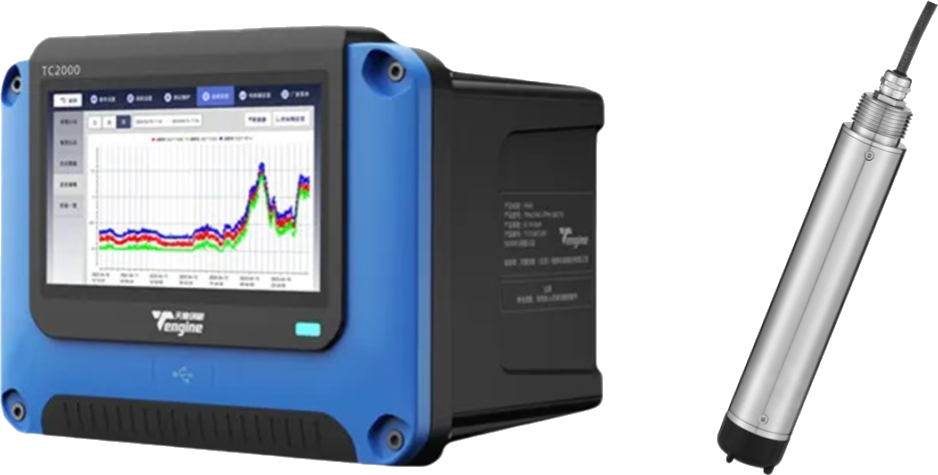

LDO Luminescent Dissolved Oxygen Analyzer
Dissolved Oxygen
Luminescent dissolved oxygen analyzer with no membranes or electrolyte to replace — virtually maintenance-free for harsh wastewater conditions.
- No membrane or electrolyte replacement — virtually maintenance-free
- Consumes no oxygen; no flow or agitation requirement
- Immune to H₂S and common ion interference
Overview
An online dissolved oxygen sensor is an instrument that continuously measures the concentration of oxygen dissolved in water, enabling aeration control and biological process optimization in wastewater treatment.
The sensor uses the luminescent (fluorescence quenching) principle instead of a traditional membrane electrode. Oxygen molecules quench the luminescence of a fluorescent dye; the analyzer calculates dissolved oxygen concentration from the luminescence decay. The method consumes no oxygen and requires no flow or agitation.
Typical Applications
Features
- Innovative luminescent principle; no need to replace membranes or electrolyte, virtually maintenance-free
- Does not consume oxygen; no flow rate or agitation requirements; resists interference from H₂S and common ions that degrade electrochemical sensors
- Digital sensor with strong anti-interference capability; cable length up to several hundred meters
- Compatible with brush-type self-cleaning system, enabling maintenance-free operation and reduced O&M costs
Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 0.00–20.00 mg/L (ppm); air saturation 0–200% |
| Resolution | 0.01 mg/L (ppm) |
| Accuracy | ≤ 5 mg/L: ±0.1 mg/L; > 5 mg/L: ±2% or ±0.2 mg/L |
| Repeatability | ≤ 0.1 mg/L |
| Sensitivity | ±0.05 mg/L |
| Response Time | 90% in < 60 s; 95% in < 90 s (at 20 °C) |
| Digital Interface | RS485 interface (Modbus RTU protocol) |

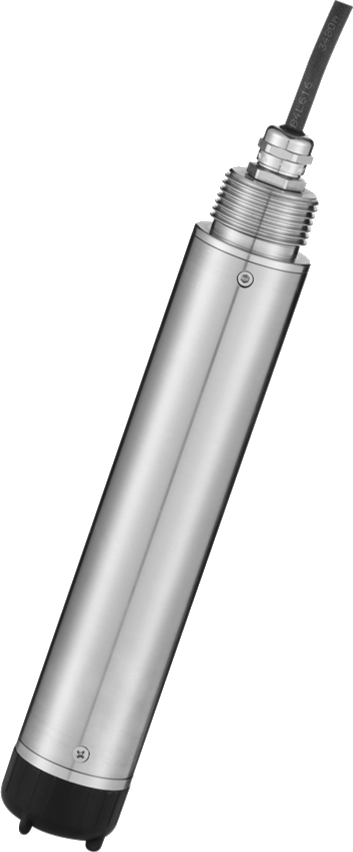

| Dimensions | Φ40.5 × 240 mm |
| Material | 316L stainless steel |
| Cable Length | Standard 10 m shielded cable; customizable on request |
| Connection Type | 1" conical external thread |
| Protection Rating | IP68 |
| Operating Temperature | 0–60 °C |
| Relative Humidity | 0–95% RH, non-condensing |
| Operating Pressure | Max. 4 bar |
